Trend Hinge Recessing Jig

Stock Code: TREHINGE/JIG
£175.00 (exc VAT) Each ( £61.79 Off )£210.00 (inc VAT) Each ( £61.79 Off )

Online: In Stock
Cardiff: In Stock
Bridgend: In Stock
Quantity:
-
+

The professionals choice for quickly and accurately hanging doors ! Note: Router not included


Features

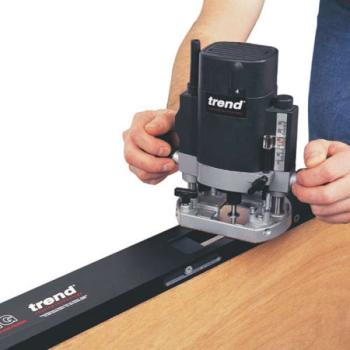

The Hinge Jig is a portable template set designed for recessing hinges in wooden doors & frames.Itis easy to use with minimal setting-up time, completing the job both accurately & quickly.Used on-site & in joinery shops to increase productivity with excellent results.Four apertures for fire door requirements.No need for marking outin the conventional way.Quick & simple to set-up as the hinge is used as the pattern.Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.Use with a light duty router with 1/4 inch collet.Long reach router cutter required 12mm diameter with 70mm overall length.Angled position slots to prevent creep.


Specification


Hinge sizes possible Length min. 2 5/8" (67mm) Length max. 5" (127mm) Width min. 3/8" (9.5mm) Width max. 1 3/8" (35mm) Door sizes possible Height min. 6' 5" (1955mm) Height max. 6' 10" (2100mm) Thickness min. 5/8" (16mm)


Standard Equipment


4 x Apertures2xBradawls with spacer1 x 16mm guide bush1 x T-Handle hex key1 x 4mm spacing gauge1 x Plastic storage tube


Warranty


12 months


To check compatability of your router model click here

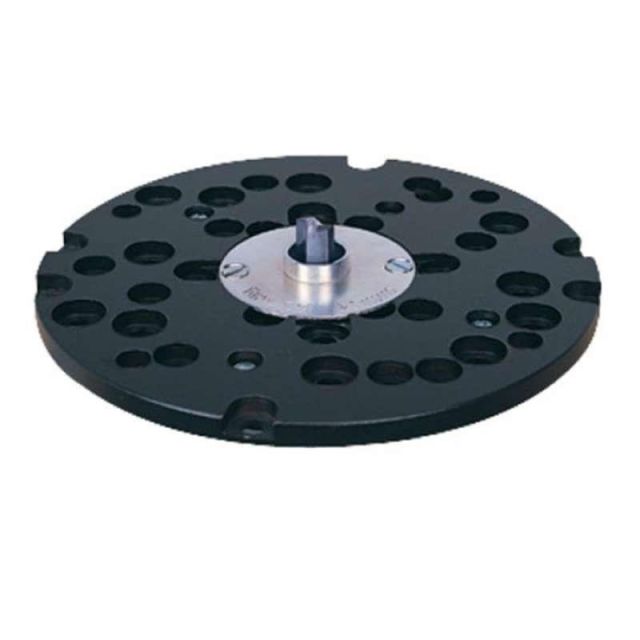

To purchase a universal subbase for your router model click here
