Bralo Aluminium/Steel Peel Rivets

Description

Bralo Peel Rivet is a break-mandrel blind rivet designed for the fastening, in a fast and simple way, of rigid materials to soft materials or those with low resistance.

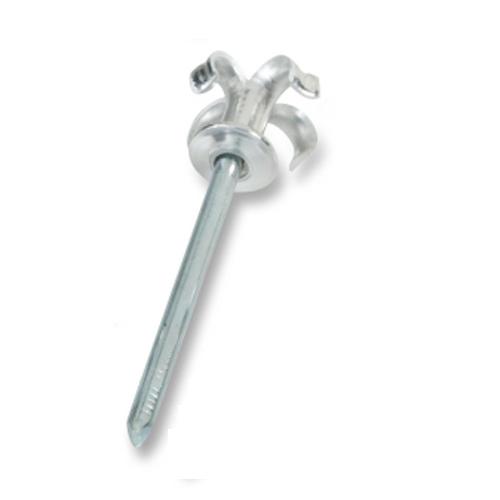

The head of the mandrel is provided with edges that longitudinally cut the rivet body on the blind side. The rivet body is divided thus into four petals that bend outwards and come into contact with the material to be fastened, creating a locking head with a big diameter. This large expansion on the blind side distributes the load and the clamping force, reducing the risk of crushing and breaking of materials. Once the riveting process is finished, the head of the mandrel comes off leaving a central hole. Available in multiple finishes and epoxy paints.

Features

Single-side access (blind rivet).
Ideal for the use in applications with soft or low resistance materials (plastics, fiber, wood).
Allows use in oversized holes.
Diversity. It is available in a wide range of diameters, from 3.2 mm to 6.4 mm.
It does not deform surfacesafter the riveting process is finished (painted, glazed, etc.).
It covers a wide range of thickness to be riveted, from 0.8 mm to 175 mm.
Good resistance to changes in temperature.
Available in alloy magnesium content of 3.5 and 5, which give a great tensile and shear strength, an excellent clamping force and a high resistance to corrosion.
Fast, simple and high quality assembly.
To be used with simple, fast and lightweight tools.
