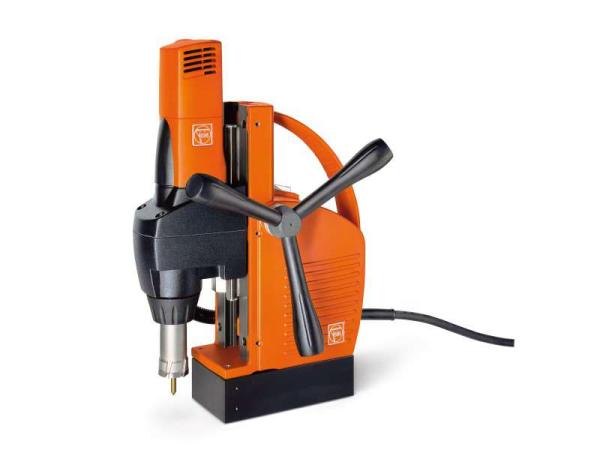

Fein KBM32Q Metal Core Drilling Machine

Fein KBM32Q Metal Core Drilling Machine

Voltage
Please select from the options above.
Quantity
-
+

Features


Small, extremely lightweight core drilling unit with superb ease of use for vertical and overhead use.
Quick IN rapid change system for fast, keyless tool changes.
Continuously adjustable double dove-tail guide enables use of long drilling tools without removing the machine from the workpiece.
High-torque FEIN high-power motor.


Specification


Core drill bit max. diameter 32 mm
Coredrill, drilling depth max. 50 mm
Twist drill max. Ø 13 mm
Tapping M 12
Input 700 W
Output 450 W
Speed, no load 550 rpm
Speed, full load 440 rpm
Core drill holder Quick IN
Stroke 135 mm
Total stroke range 260 mm
Magnetic holding power 9 000 N
Magnetic foot dimensions 160 x 80 mm
Cable with plug 4 m
Weight according to EPTA 10,5 kg


Standard Equipment


1 case
1 cooling lubricant pump
1 lashing strap
1 swarf hook
3-jaw chuck up to Ø 13 mm
1 Quick IN adaptor for M18 x 6 P 1.5
2 centering pins
1 contact guard


Warranty


Fein 3 Year Warranty
