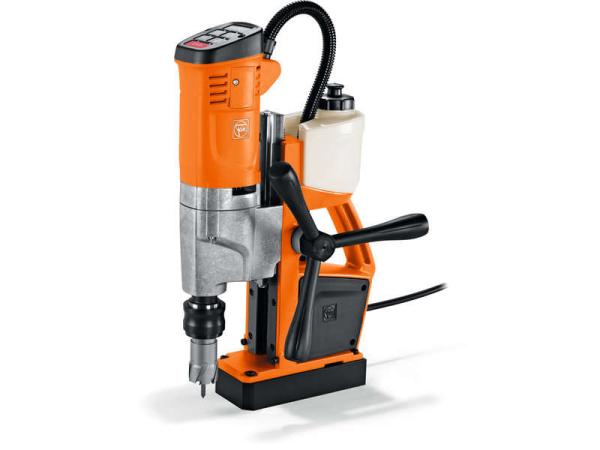

Fein KBU35QW 35mm Magnetic Core Drill

Fein KBU35QW 35mm Magnetic Core Drill

Please select from the options above.


Small and powerful single-speed universal magnetic core drill with clockwise/anti-clockwise operation and maximum functionality for flexible working on the construction site.
Extremely resilient construction thanks to sturdy machine design with swivel-mounted motor cable protection hose.
Designed for tough use in industry and manual trades.
Perfect power-to-weight ratio thanks to compact, weight-optimised design and FEIN 1100 W high-power motor with high speed stability for reliable and economical working.
With clockwise/anti-clockwise operation, electronic speed setting and a 260 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming.
Small and lightweight. Simple operating concept avoids mix-ups and can be clearly seen by the user.
Additional magnetic switch in the drill jig. Tool-free core bit quick change system.
Speed-controlled tacho electronics. High magnetic holding force.
Convenient magnetic holding force display. Integrated coolant tank.
Feed handwheel can be moved from one side to the other.
Tilt sensor. Speed saving "memory function"


Input 1 100 W
Output 550 W
Speed, full load 130 - 520 rpm
Twist drill max. 16 mm
Core drill, drilling depth max.50 mm
Tapping M 14 Countersinking max. 31 mm
Reaming max. 16 mm
Carbide core drill bit max. diameter 35 mm
HSS core drill max. 35 mm
Core drill holder 3/4 in Weldon
Changing the core bit tool-free
Stroke 135 mm
Total stroke range 260 mm
Magnetic holding power 10 000 N
Magnetic foot dimensions 175 x 80 mm
Cable with plug 4 m
Weight according to EPTA 10,6 kg

Standard Equipment

1 case
1 coolant tank
1 lashing strap
1 swarf hook
1 centering pin
1 contact guard


Fein 3 Year Warranty
