Festool DF500 Q-Plus Joining Machine Biscuit Joiner

Description

Oval shape, larger glued area, more stability. The DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, DOMINOs in different sizes and a wide range of accessories for special applications. The result: extremely strong, invisible joints. And DOMINO can do much more: rack joints, frame joints, drawer joints, etc.

Features

Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm
Patented routing principle unique to hand-held machines for accurate work with no kickbacks

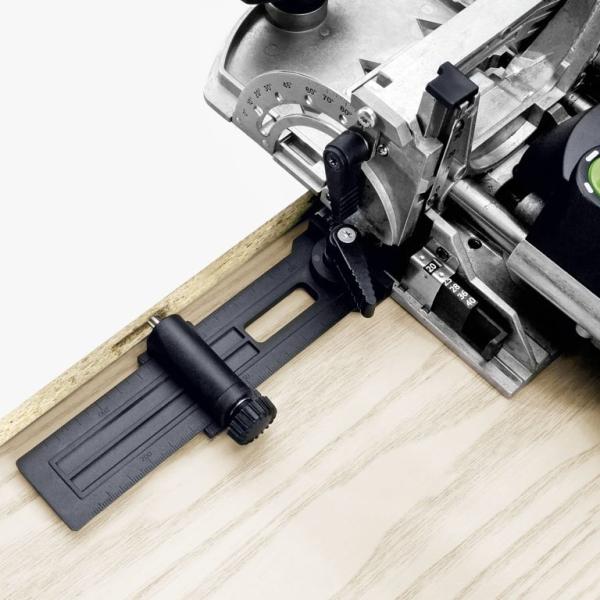

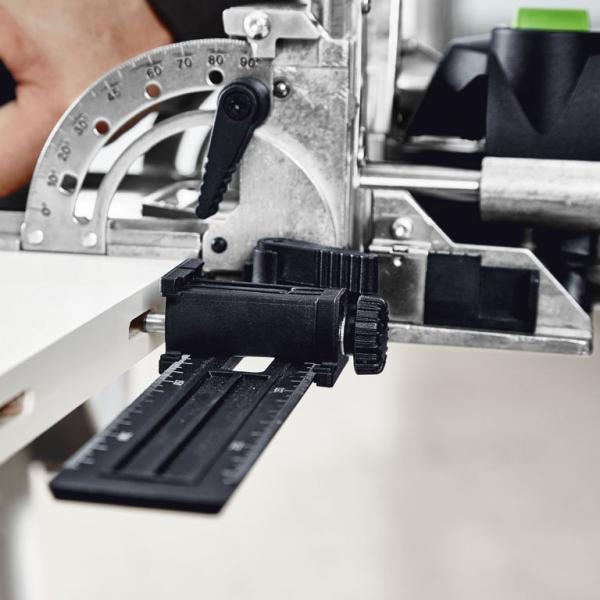

Stops that are quick and easy to adjust, for accurate results
Ergonomic shape for ease of operation in any position
Rotation-proof joint with DOMINO dowels providing maximum stability
System accessories compatible with both DOMINO jointers

Specification

Drive type: Mains
Voltage: 110v / 240v
Power consumption: 420 W
Idle engine speed: 25500 min?¹

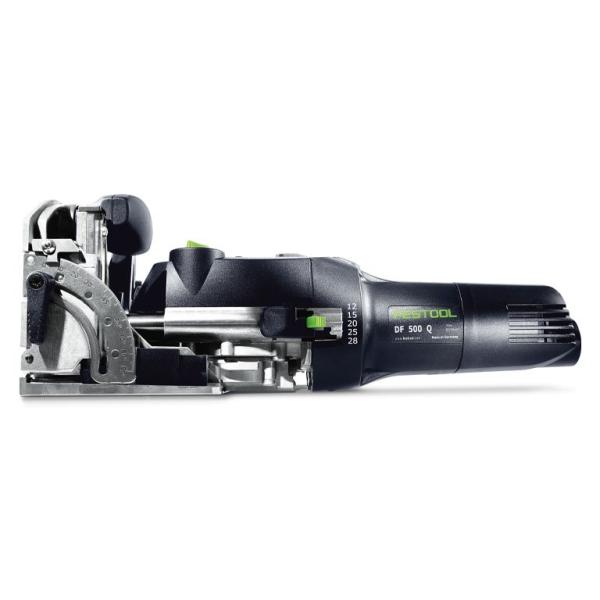

Depth stop for routing depth: 12, 15, 20, 25, 28 mm
Max. routing depth: 28 mm
DOMINO slot cutter dia: 4, 5, 6, 8, 10 mm
Routing height adjustment: 5 - 30 mm

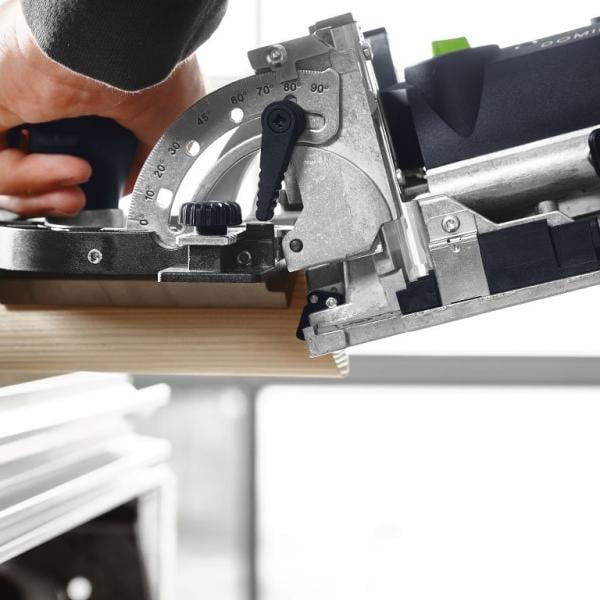

Mitre routing: 0 - 90 °
Dust extraction connection dia: 27 mm
Weight: 3.2 kg
