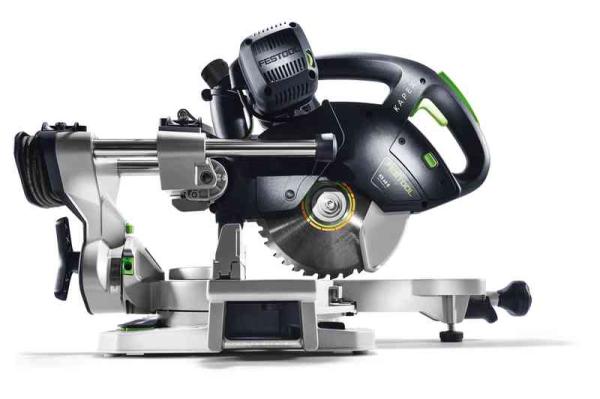

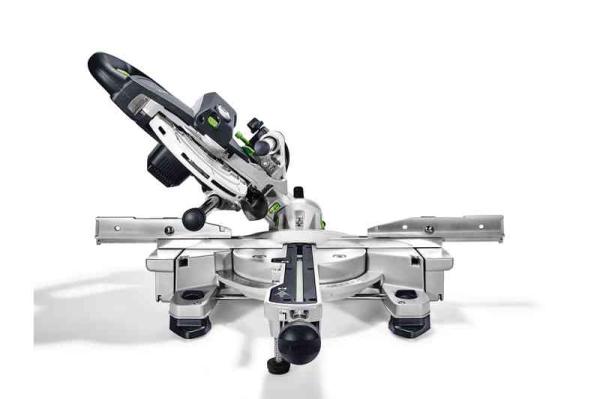

Festool Mitre Saw KS60E- Set/XL-UG GB

Description

Features

Compact and lightweight- with ergonomic handles and cord holder
LED spotlight to show cutting lines precisely (included in the set or available as an accessory)
Bevel for producing interior and exterior angles
Inclination angle of up to 47 degree /46 degree on each side and mitre angle of up to 60 degree on each side

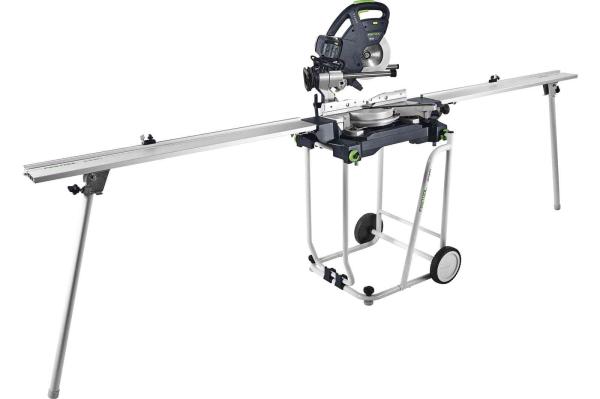

More mobile with the base frame: The UG-KAPEX base frame is a stand and a transport frame in one
Cutting depth limiter for rapid grooving
For a clean and healthy working environment: The extraction system in combination with a Festool mobile dust extractor sucks up the dust at its source
Always adapted to the working material: Festool saw blades are ideally adapted to the KAPEX KS 60 and the materials being used

Specification

Power consumption - 1200 W
Idle engine speed - 1300 - 3500 min
Saw blade diameter - 216 mm
Cutting depth 90 degree /90 degree - 305 x 60 mm
Cutting depth at 45 degree /90 degree - 215 x 60 mm
Cutting depth 45 degree /45 degree (left) - 215 x 40 mm
Inclination angle - 47/46 degree
Mitre angle - 60/60 degree
Dimensions (W x D x H) - 661 x 475 x 430 mm
Dust extraction connection dia. - 27/36 mm
Weight - 17.8 kg
Cutting depth 60 degree /90 degree - 150 x 60 mm
Cutting depth 45 degree /45 degree (right) - 215 x 20 mm

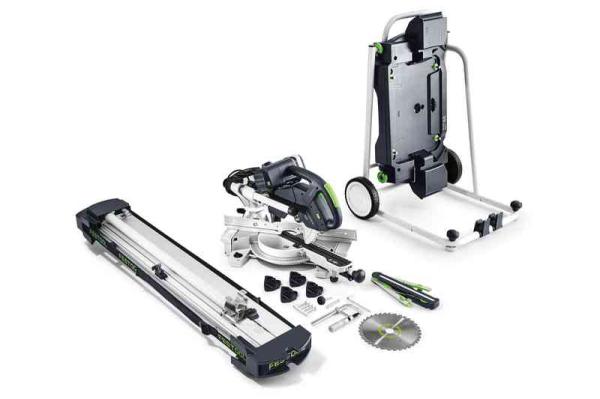

Standard Equipment

HW universal saw blade W 36
Clamp FSZ 120
LED spotlight
Bevel
Elevation
Underframe
KS-UG-KS R/L trimming attachment
Adjustable stop
Telescopic slide-out scale
Fold-out pedestal
Hex key
