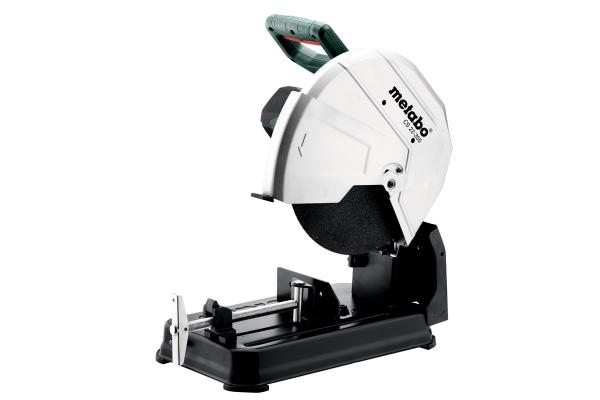

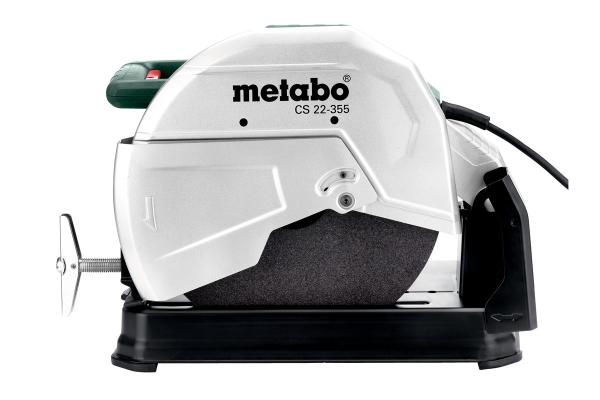

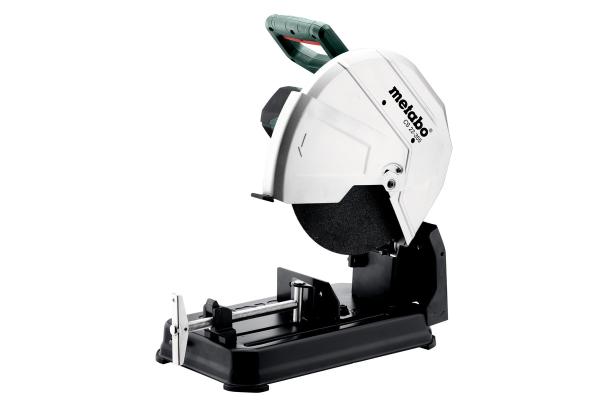

Metabo CS23-355 Metal Chopsaw

Description

Features

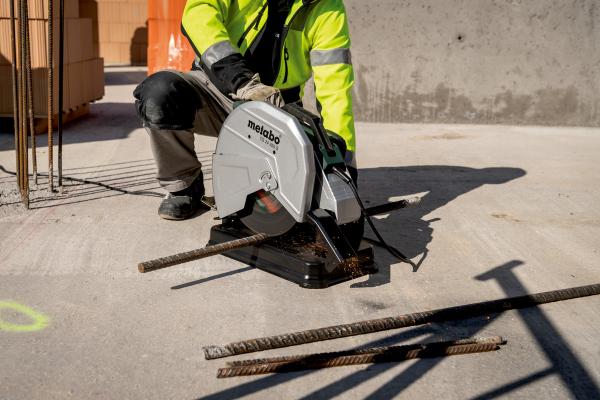

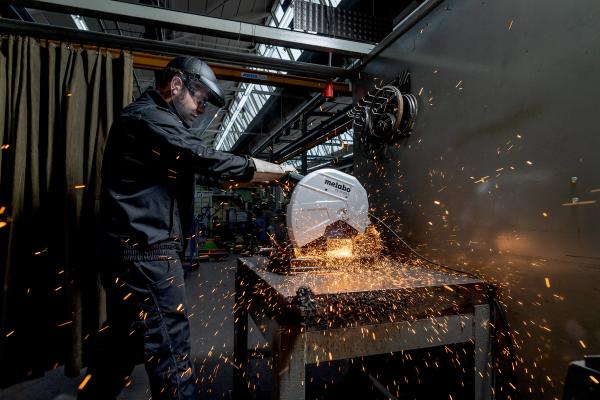

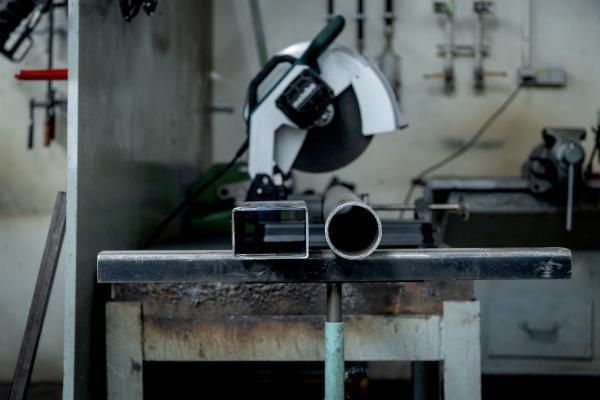

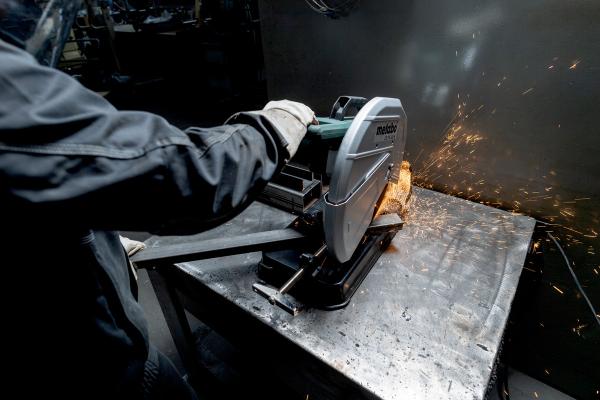

Powerful metal chop saw for cutting of profiles, pipes and rods made of steel, NF metals, iron and cast profiles
Quick clamping device with variable mitre setting for angled cuts from -15° to 45°
Large handle transversal to the cutting axis for optimum power transmission while cutting
Adjustable cutting depth limiter for optimum use of the cutting disc
Easy, fast disc change with spindle lock
Maximum user safety: swivelling cutting guard, adjustable spark deflector sheet and rubberised base for safe cutting
Safety switch for protection against accidental start up
Robust, large machine table with practical storage for hexagonal wrenches

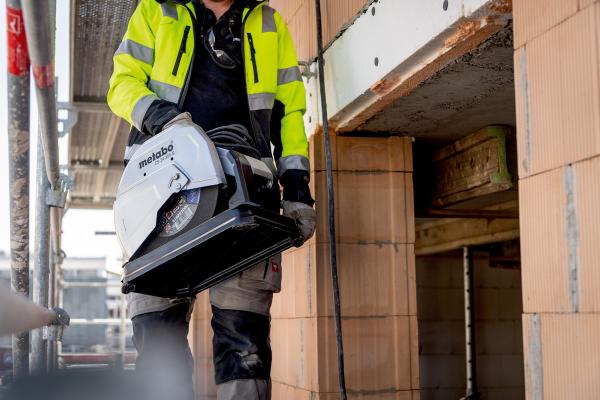

Easy to transport due to built-in handle and locking device

Specification

Grinding wheels (Ø x bore) - 355 x 25.4 mm
No-load speed - 3700 rpm
Rated input power - 2300 W
Max. cutting capacity round tube - 132 mm
Max. cutting capacity square tube - 120 x 120 mm
Max. cutting capacity rectangular tube - 100 x 208 mm
Max. cutting capacity L-profile - 150 x 150 mm
Dimensions of the base plate - 456 x 256 mm
Transport height - 394 mm
Weight - 16.8 kg
Cable length - 4 m
