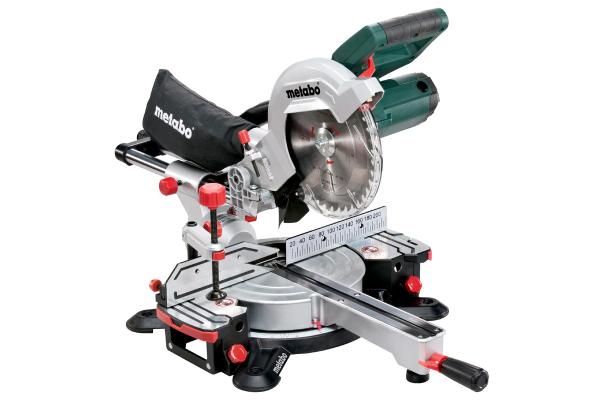

Metabo KGS216M Sliding Compound Crosscut Mitre Saw

Description

Features

Crosscut and mitre saw of the mobile M-class with sliding function - light, precise, user-friendly
Large cutting capacity thanks to sliding function for wide work pieces

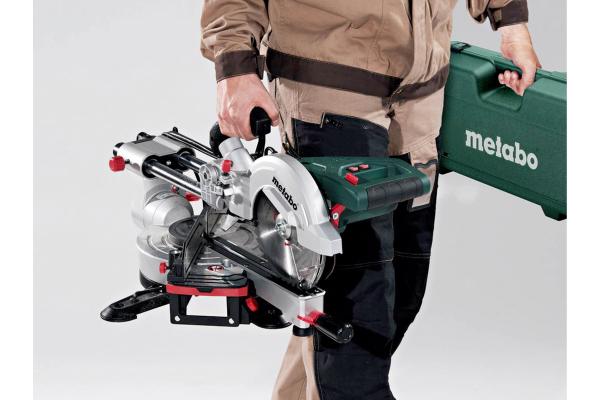

Compact light weight, suitable also for one-handed transport
Robust die-cast aluminium design for the highest demands

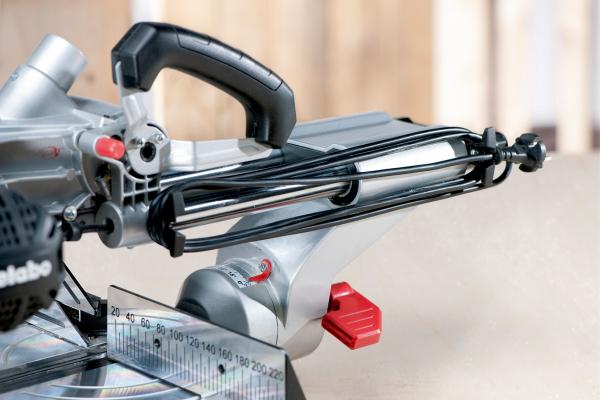

Easy transport thanks to ergonomically-designed handles and saw head lock
Effective dust extraction via integrated dust scoop
Fast and precise setting of common angles using stop points
Laser for exact display of the cutting line (mains powered, no batteries required)

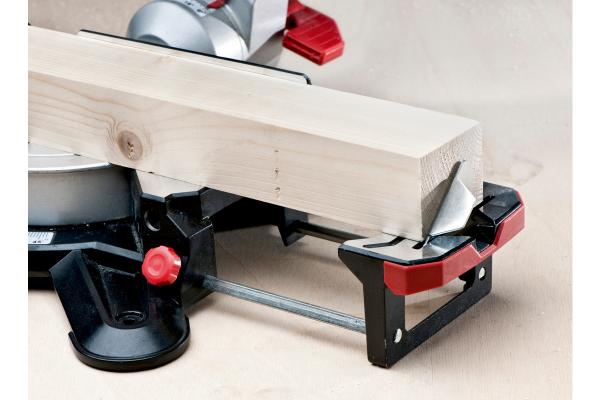

Extendable table width extensions, also removable to put underneath extremely long work pieces
Bright LED work light for illumination of the cutting line (mains powered, no batteries required)

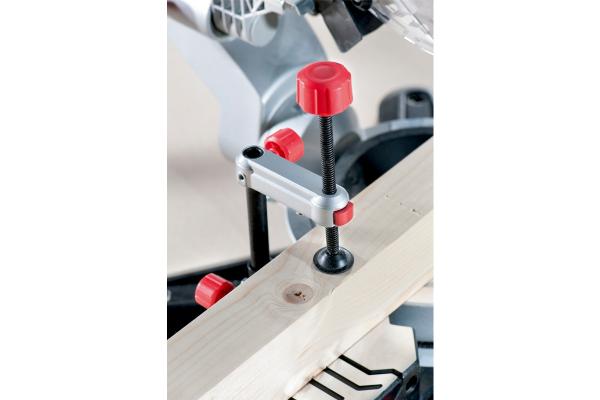

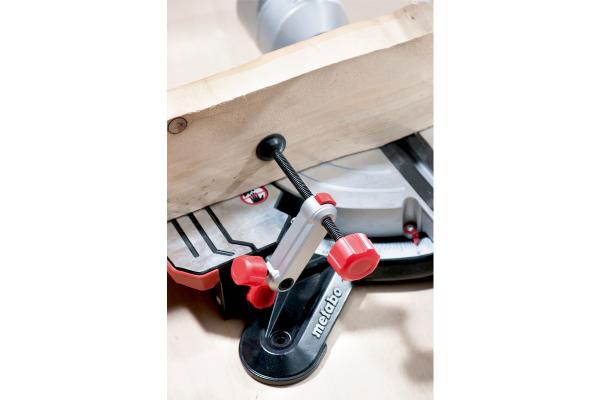

Sliding high rear fence profiles for safe sawing Quick-action clamp for secure fixing of the work piece from the top or front
Depth guide for easy creation of grooves
Saw head can be inclined to the left, with additional angle range for undercuts
All scales and operating elements are visible from the working position and can be operated intuitively
Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required

Specification

Dimensions - 760 x 475 x 340 mm
Support surface - 345 x 730 mm
Maximum cutting width 90°/45° - 305 / 205 mm
Maximum cutting depth at - 90°/45° - 65 / 36 mm
Cutting capacity 90°/90° - 305 x 65 mm
Cutting capacity 45°/45° - 205 x 36 mm
Turntable setting left/right - 47 / 47 °
Saw blade tilt left/right - 47 / 2 °
Saw blade - 216 x 30 mm
Rated input power S1 100% - 1200 W
Rated input power S6 20% - 1500 W
No-load speed - 5000 rpm
Revolutions at rated load - 3750 rpm
Cutting speed - 57 m/s
Weight - 13.5 kg
Cable length - 2 m

Noise emission
Sound pressure level - 97 dB(A)
Sound power level (LwA) - 104 dB(A)
Uncertainty of measurement K - 3 dB(A)

Standard Equipment

1x Metabo KGS216M Crosscut Mitre Saw
1x Carbide saw blade (40 teeth)
2x Table length extensions
1x Length guide
1x Material clamp
1x Tool for saw blade change
1x Cable winder
1x Chip collection bags
