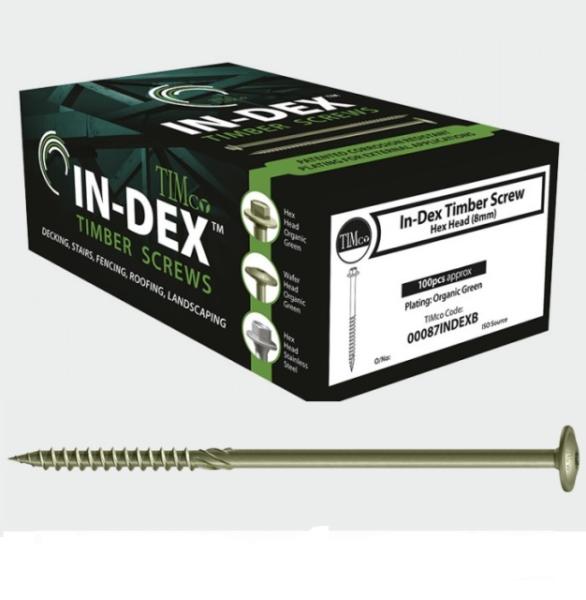

TIMco In-Dex Wafer Head Green Timber Framing Screws

Features

TIMco In-Dex Timber screws are designed for decking, stairs, fencing, roofing and landscaping. Plated in olive green to withstand up to 1,000 hours (min) salt spray resistance. They have a 50-degree deep single thread to provide secure fixing with a high pull-out resistance and a type 17 slash to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge. They also have a 25-degree sharp point for easier penetration into all wood types. The washer head provides extra pull down power compared to the standard hexagon head In-Dex screws, which makes these screws particularly effective for screwing warped timbers together, or fixing timber sleepers together.

Flanged washer head with torx T30 and T40 recess
1,000 hours (min) salt spray resistance
17 slash to reduce insertion torque and the likelihood of the timber
50-degree deep single thread to provide secure fixing with a high pull-out resistance
25-degree sharp point for easier penetration into all wood types
Helix to remove debris and increase insertion speed

Specification

Gauge - 6.7mm-8mm (widest part of thread)
Length - 95mm-400mm (from underneath head)
Head (6.7mm) - 16mm diameter flanged wafer head with T30 torx
Head (8mm) - 21mm diameter flanged wafer head with T40 torx drive drive
Plating – organic green
