Timco Zip-Fix Cavity Wall Fixings

Heavy duty cavity wall anchor for use in plasterboards, most hollow concrete blocks, cavity walls and ceilings. Pack includes both 40mm and 60mm screws for a wider variety of fixture thicknesses. NOTE: Nylon arms are for installation purposes only and once the fixing is in place, Zip-Fix becomes an all steel, non-flammable fixing.

Features

Two sizes of zinc pan head machine screws (M6 x 40 and M6 x 60) for varying fixture thicknesses

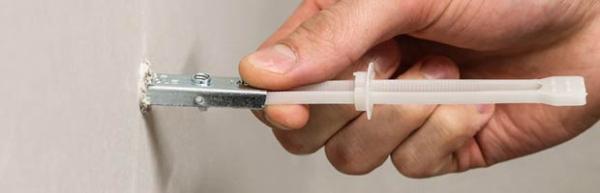

Rapid installation, just Zip & Fix
Please note: The nylon arms are for installation purposes only. Once removed this fixing becomes all-metal and has an improved fire resistance
BS 7671:2018 IET Wiring Regulations (Eighteenth edition) Section 521.10.202 of this British Standard states all cable support systems must be constructed from materials that will protect against premature collapse in the event of fire. It prohibits the use of non-metallic fixings as the sole means of support.

Specification

Screw Size - M6 x 40mm & M6 x 60mm
FCH Ø - 7mm
MFT - 45
Pack Type - Bag / Box
Pack Qty - 10 / 50
Driver Bit Size - PZ3
Material - Plastic
Substrates Plasterboard, Block

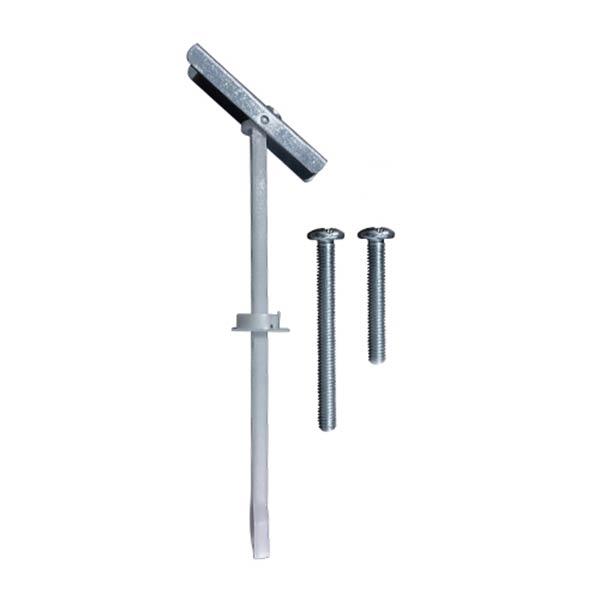

Included Items M6 x 40 Screws, M6 x 60 Screws
Thread Type - Metric
Thread Ø (mm) - M6
