RECORD DP25B Bench Drill with 22" Column and 1/2" Chuck

This machine is also on display in our Cardiff showroom.
Should you wish to make further enquiries about purchasing
or arrange for an in-store demonstration please feel free to contact us.

A good quality, dedicated drilling machine is an indispensable tool in any workshop. The DP25B brings this versatility, along with traditional Record Power build quality and reliability, within easy reach of the home woodworker and discerning DIY enthusiast. A wide variety of bits can be accepted and the four speeds allow for a great variety of materials to be drilled, including wood, metal, plastic and many others.

The cast iron table can tilt up to 45º and will accept most drill press vices, allowing secure holding for increased accuracy and safety. When extra capacity is needed the table can be moved to the side of the machine so the base can be used as a working table, which also accepts drill press vices. For further strength and performance, the headstock also features cast iron, adding weight to reduce vibration, along with a cast iron handwheel.

The DP25B features an easy to use locking collar depth stop. To support it's large capacities, the machine features a rack and pinion table support mechanism, a feature often only found on much larger machines, representing excellent value for a machine in this price range.

Features

Compatible with Drill Press Vices: The DP25B can be used with drill press vices, ideal for accurate boring in many different materials.







Tilting Table: Drilling at angles up to 45º is possible thanks to the tilting table.







Pulley System: The 5 speed pulley system, easily accessed from the top of the head unit, provides a good range of speeds for cutting a wide variety of materials.








Extra Capacity: When extra capacity is needed, the table can be easily moved out of the way to allow the base to be used.




Locking Collar Depth Stop: This depth stop makes accurate repeat boring simple and easy to achieve.

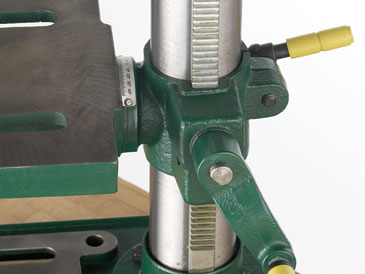

Rack and Pinion Rise & Fall: The rack and pinion table support, a mechanism usually found only on much larger machines, gives excellent performance and value for money.

Specification

Throat Depth: 127 mm
Depth of Feed: 60 mm
Chuck to Table: 235 mm
Chuck to Base: 355 mm
Speeds: 500, 890, 1400, 1900 & 2500 rpm
Motor: 1/3 hp
Chuck: 2 Morse Taper / 13 mm
Weight: 27 kg
Size: H850 x W210 x D380 mm
