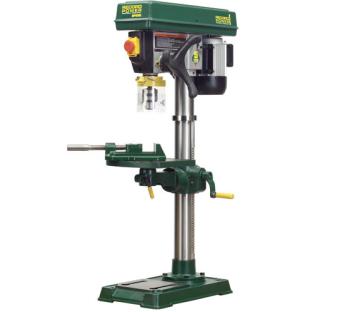

Record Power DP58B Heavy Duty Bench Drill

FAST 'FREE' DELIVERY! (uk mainland only t&c apply)

This machine is on display in our Cardiff showroom if you wish to see it before you buy.

When it is critical to drill a hole at a certain angle or the hole needs to be stopped at a specific depth, there really is no substitute for a dedicated drilling machine. By setting up the work piece and clamping it to the table all guesswork is eliminated and accurate and repeat drilling becomes simple and easy. Record Power have long had a reputation for fine drilling machines and our current range is no exception.

Making extensive use of steel and cast iron and driven by a powerful induction motor, the DP58B can be expected to give reliable service for many years. The headstock in particular is made from a large casting to give rigidity and absorb vibration. The large, heavy table is fitted with rack and pinion rise and fall. The machine has 12 speeds, making it suitable for drilling metal as well as wood. This is particularly useful as most woodworkers have the occasional need to drill metal for hinges, brackets and plating etc. and it can be very frustrating to have the right machine for the job but not the right speeds.

Record Power have a high reputation for quality drilling machines and we believe that when this machine is compared to others in the market at similar (or greater) prices the value for money it represents will be quickly appreciated.

Features

Pulley System: The DP58B has a twelve speed pulley system, to offer a wide range of speeds for wood and metal.






Tilting Table: The cast iron, table has built in locating slots to allow for a vice to be securely held in place and can be tilted to allow for drilling at angles up to 45º





Powerful Induction Motor: The motor is able to deal with tight grained hardwoods and even metals with ease.






Cast Iron Handwheel: The cast iron handwheel is ergonomically designed for user comfort.






Rise and Fall: The rack and pinion rise and fall makes adjustment easy.





.

Specifications

Throat Depth 165mm
Depth of Feed: 80mm
Chuck to Table Maximum 371mm
Chuck Included No.2 M/T x 16mm
Speeds 180-250-300-400-480-580-970-1280-1410-1540-2270-2740 rpm
Motor Power 0.6kW
Weight 55kg
Overall Dimensions (H)1050 x (W)270 x (D)563mm
