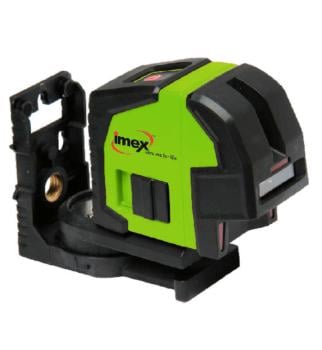

Imex LX22 Crossline Laser Level with Tripod

Cross Line Laser Level Imex LX22

A breakthrough in Laser EDGE Technology…………. the brightest Line Laser has arrived!

Imex International has developed new technology in laser diodes to create extremely clear and precise laser lines. Traditionally line lasers will have a thin laser line when close by and then, the further away the line travels the wider the laser line gets. This is not good as the laser line becomes more and more inaccurate. The LX22 has a great laser line that can be easily seen up to 40M away inside, and has sharp clear, thin lines all the way.

This Imex cross-liner and plumb spot, self – levelling laser has 1 sharp vertical line and 1 horizontal line, plumb up and down spot. Features an excellent magnetic rotating bracket and a pulsating mode for outdoor use with optional detector up to 50m, this is the most efficient cross line laser available giving better results every time. It is the ultimate palm laser. You can also turn the self-levelling function off and create a laser line wherever needed.

The cross line Laser level and plumb spot self – levelling laser from IMEX with 1 sharp vertical line and 1 horizontal line, plumb up and down spot. Features a rotating bracket and pulsating mode for outdoor use with optional detector to 50m, this is the most efficient cross line laser available giving better results every time.
This Cross Line Laser level comes with a clamp mount that you can attach to a variety of surfaces, and standard tripod threading, making it highly usable in a variety of situations.
The tool has a locking pendulum, which is both a very important safety feature to protect the integrity of the laser level and a useful feature for projecting lines out of level when needed.
The Imex LX22 Cross line Laser level is an exceptional laser line level that projects sharp, bright lines across a room with a high level of accuracy, has one of the best warranties and can be used in a variety of situations without issue.
This CrossLiner laser has a IP rating of IP54 which is excellent for all application’s.

1 Vertical, 1 Horizontal beam. Self levelling.
Magnetic bracket.
Self levelling.
Lock mode for fixed angles.

IDEAL FOR:

Shop fitting and cabinet installation
Wall and floor tiling
Wall Partitions
Electrical switch and light placement
Steel fabrication alignment and set out
Interior decorating
Window and door placement

View more similar products: IMEX Lasers & Measuring Tools



Specification Detail

Light Source diode 635nm Red diodes
Output Laser Class II
Accuracy +/-3mm @ 15m
Beams 1 Horizontal 2 Vertical plumb spot up and down
Damping type Self Levelling – Magnetic
Hours of continuous use Approximately 10 hours – all lasers
Working distance 30m   55m with detector
Dimension 65 x 95 x 85mm
Batteries 4 x AA
