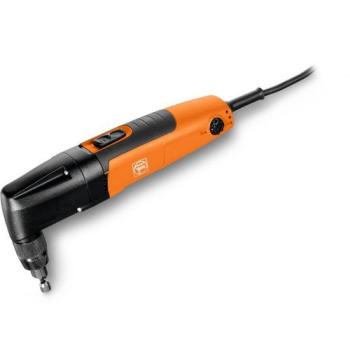

Fein BLK 1.3TE Nibbler Set 110v

Features

Cutting direction setting can be changed in 45° steps up to 360° using tool-free pivoting cutting head.
2.3 m/min cutting speed for excellent work progress.
Optimum ergonomics with a handle up to 20% slimmer because of its extremely thin drive head.
Chip protection mesh on vent slots.
Low operating costs due to long tool life of punch and die.
Brief overlapping area up to 2.6 mm.
Rotating punch for a service life which is now up to 30 % longer.
QuickIN clamping system. Stainless steel up to 0.6 mm.
Motor with outstanding performance and stability.
5 metre cable.

Specification

Input 350 W
Output 210 W
Strokes 1,000 - 1,800 rpm
Cutting speed 2.3 m/min
Steel up to 400 N/mm² 1.3 mm
Steel up to 600 N/mm² 0.8 mm
Steel up to 800 N/mm² 0.6 mm
Non-ferrous metals up to 250 N/mm² 2 mm
Cutting width 4 mm
Immersion Ø with die 19 mm
Rad. of smallest curve (inside/outside) 25 / 30 mm
Cable with plug 5 m
Weight according to EPTA 1.80 kg

VIBRATION AND SOUND EMISSION VALUES
Sound pressure level LpA 82 dB
Uncertainty of measured value KpA 3 dB
Sound power level LWA 93 dB
Uncertainty of measured value KWA 3 dB
Sound peak value LpCpeak 93 dB
Uncertainty of measured value KpCpeak 3 dB
Vibration value 1 αhv 3-way 9,5 m/s²
Uncertainty of measured value Kα 1,5 m/s²

Standard Equipment

1x punch (6 36 02 050 00 0)
1x die for trapezoidal sheet metal (3 01 09 170 00 1)

Warranty

click above logo to register your new FEIN product within 6 weeksafter purchasefor the 3-year FEIN PLUS warranty.
