SOUBER DBB Mortice Lock Fitting Jig

This very precise drilling jig is designed specifically to guide the drilling bit to cut mortices for door locks and their faceplates. It is quick and simple to set up, self centring and locks onto the door edge securely.
It really is a simple process: mark the lock length on to the door, select the width of mortice cutter that suits your lock, set the depth collar, pass the drill shaft through the jig’s guide bush, lock the jig to the door and using power from your drill, drive the carbide tipped mortice cutter into the door moving up and down; repeat process for the faceplate. This produces a very clean smooth cut and is one of the fastest most accurate ways to cut a mortice. You can also use it to cut hinges.
Power drill with a 13mm chuck running at speeds 2,000 - 3,000 rpm is recommended. Works with any doors from 30mm - 85mm in thickness. Supplied with 3 special carbide tipped cutters: 19.0, 22.2 and 25.4mm covering the most popular lock widths, a shaft for lock up to 100mm in depth and carry case.

Features

Cuts out a mortice for the lock body and its face plate
Extremely fast and accurate
Every single part of the Souber Jig1 is replaceable
Comes in a handy plastic carry case with spaces for any extras
Is able to recess for door hinges
Can cut out for some strike plates and electric releases
Jig1 uses the improved new style screw on TCT (Tungsten Carbide Tipped) cutters
A combination of vertical guides, height and depth stops make sure no unwanted cuts are made
A comprehensive range of spares, accessories and special attachments available Drills Out the locks forend and the Lock Body in one
A Heavy Duty Robust construction and precision manufactured
Works with any doors from 30mm - 85mm in thickness

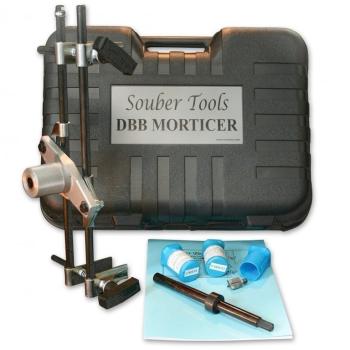

Standard Equipment

1 x Souber DBB “5 Minute” Morticer
1 x 19.0mm Screw on TCT Cutter
1 x 22.2mm Screw on TCT Cutter
1 x 25.4mm Screw on TCT Cutter
1 x Standard Shaft (Locks Up to 100mm)
1 x Plastic Carrying Case
1 x Instruction Manual and Product List
