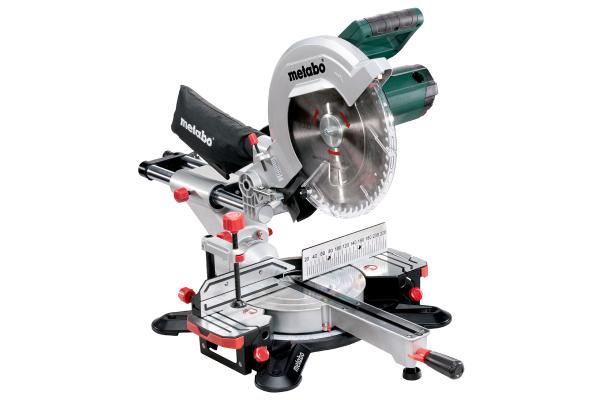

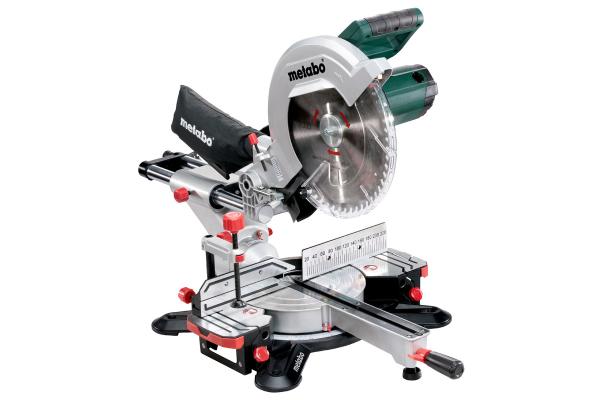

Metabo KGS305M Crosscut Mitre Saw

Description

Features

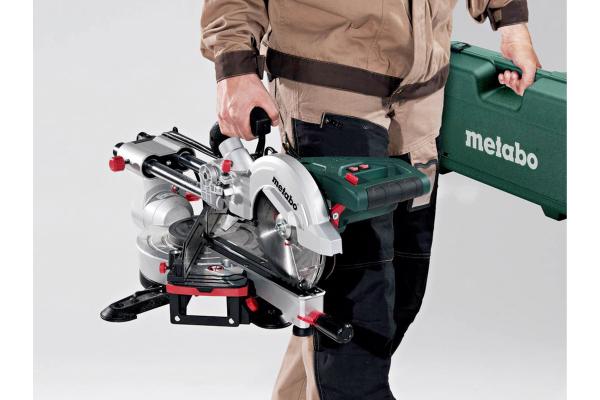

Compact light weight, suitable also for one-handed transport
Enormous cutting performance due to extremely powerful universal motor and large saw blade
Sliding function for wide work pieces.
Easy transport thanks to ergonomically-designed handles and saw head lock
Robust die-cast aluminium design for highest demands
Effective dust extraction via integrated dust scoop.
Starting current limitation prevents the actuation of the lock on start-up
Fast and precise setting of common angles using stop points
Laser for exact display of the cutting line (mains powered, no batteries required)

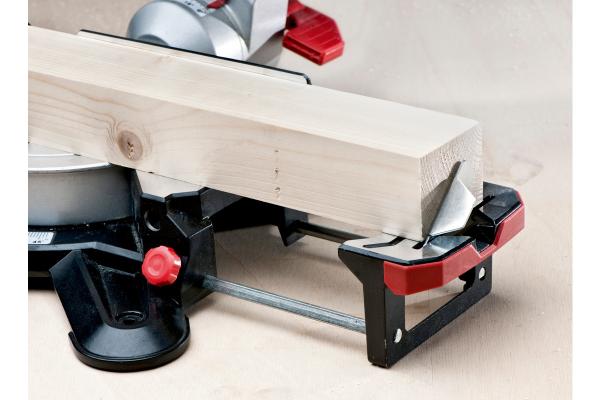

Infinitely extendable table width extension, removable to putlong panels, slabs etc. underneath
Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
High sliding rear fence profiles for safe sawing

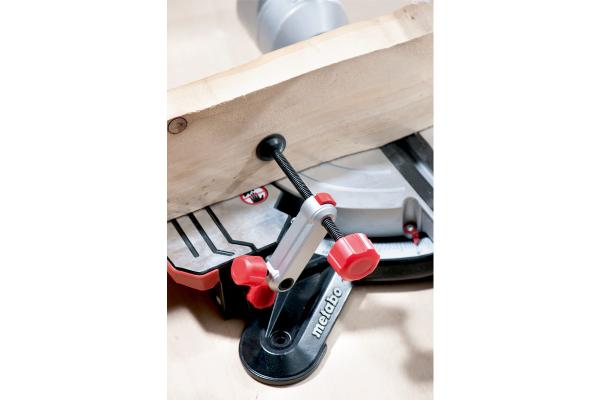

Material clamp for secure fixing of the work piece from the top or front
Depth stop for easy creation of grooves
Saw head can be inclined to the left, with additional angle range for undercuts
All scales and operating elements are visible from the working position and can be operated intuitively
Easy saw blade change by means of spindle lock: No dismantling of the pendulum protective cover required

Specification

Dimensions 850 x 515 x 615 mm / 2.8 x 1.7x 2 ft mm
Maximum cutting width 90°/45° 305 / 205 mm / 12 / 8 1/16 " mm
Maximum cutting depth at 90°/45° 105 / 67 mm / 4 1/8 / 2 5/8 " mm - Straight cut 90°/90° 305 x 105 mm / 12 x 4 1/8 " mm - Double mitre 45°/45° 205 x 67 mm /81/16 x 2 5/8 " mm
Turntable setting left/right 47 / 47 °
Saw blade tilt left/right 47 / 2 °
Saw blade 305 x 30 mm / 12 x 1.181 " mm
Rated input power S1 100% 1600 W
Rated input power S6 20% 2000 W
No-Load Speed 3700 RPM
Revolutions at rated load 2600 RPM
Max. cutting speed60 m/s / 197 ft/s
Weight 19.6 kg / 43.2lbs
Cable length 2 m / 7 ft
