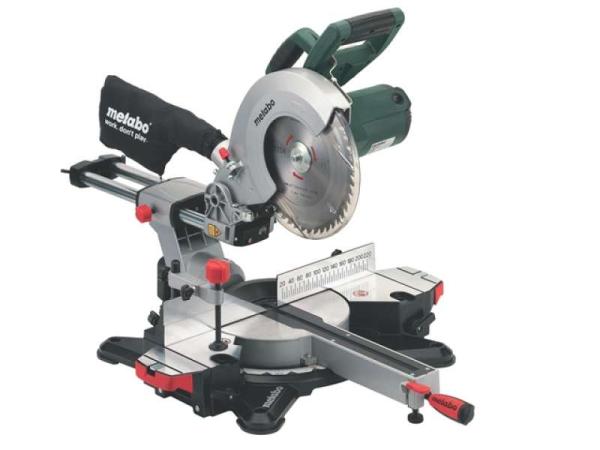

Metabo KGS216M Crosscut Mitre Saw

Description

Features

Compact light weight, suitable also for one-handed transport
Sliding function for wide work pieces.
Easy transport thanks to ergonomically-designed handles and saw head lock
Robust die-cast aluminium design for highest demands
Effective dust extraction via integrated dust scoop.
Fast and precise setting of common angles using stop points
Laser for exact display of the cutting line (mains powered, no batteriesrequired)
Infinitely extendable table width extension, removable to put long panels, slabs etc. underneath
Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
High sliding rear fence profiles for safe sawing
Material clamp for secure fixing of the work piece from the top or front
Depth stop for easy creation of grooves
Saw head can be inclined to the left, with additional angle range for undercuts
All scales and operating elements are visible from the working position and can be operated intuitively
Easy saw blade change by means of spindle lock: No dismantling of the pendulum protective cover required

Specification

Dimensions L x W x H 760 x 475x 340 mm
Maximum cutting width 90°/45° 305 mm/205 mm
Maximum cutting depth at 90°/45° 65 mm/36 mm
Maximum cross-section of the workpiece - Straight cut 90°/90° 305 x 65 mm- Double mitre 45°/45° 205 x 36 mm
Turntable setting left/right 47 °/47 °Saw blade tilt left/right 47 °/2 °Saw blade Ø 216 x 30 mm
Rated input power S1 100% 1.200 W
Rated input power S6 20% 1.500 W
Idle revolution 5.000 /min
Revolutions at rated load 3.750 /min
Weight 13,5 kg
Cable length 2 m
