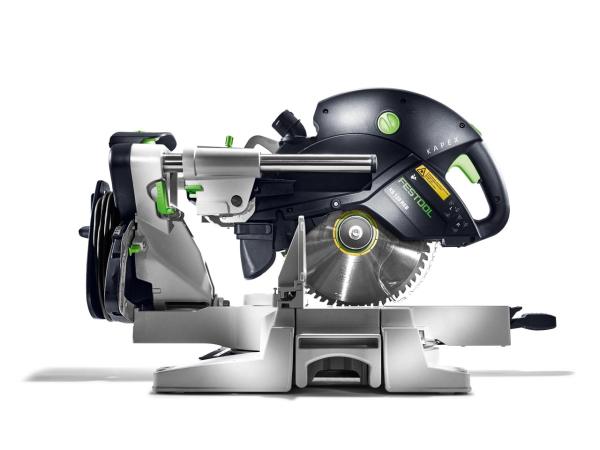

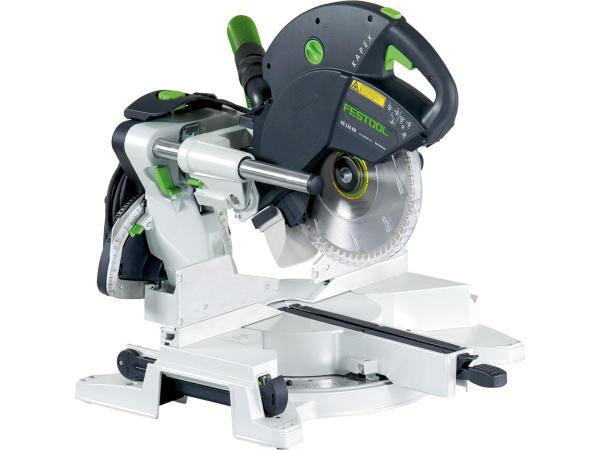

Festool KS120 REB GB 260mm KAPEX Sliding Compound Mitre Saw

Description

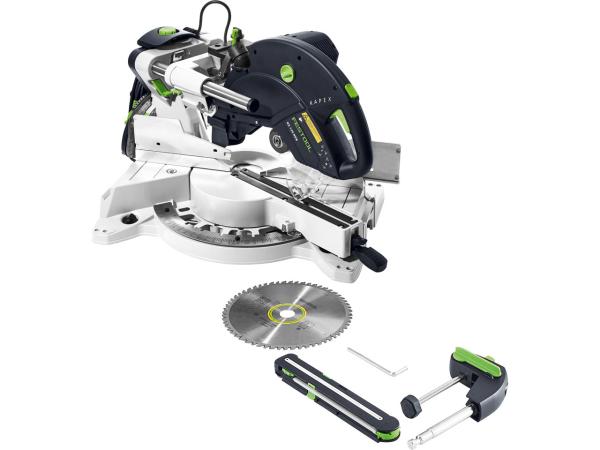

The Festool KS 120 REB GB KAPEX is a 260mm sliding compound mitre saw provides the professional solution for trimming skirting boards and cornices up to 120 mm in height, cutting boards and panels up to 305 x 88 mm, trimming crown mouldings up to 168 mm in their original wall position and trimming square timber and beams up to 88 mm thick. With spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns. Double-sealed for an extremely long service life, always exact and with zero play. Additional features include; a longer extension table to provide accurate support for long workpieces and a new crown stop. Supplied with HW universal saw blade W60, Bevel, workpiece clamp, operation tool in a carton.

Features

Twin-column guide with two bearings for unique precision.
Dual-line laser for an accurate indication of the cutting line.
Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine.
Special cutting position for cutting depths up to 120 mm.
FastFix saw blade changing for adaptation to the working material.
Twin-column guide for accurate cuts.
Precision angle transfer via bevel and dual-line laser.
Compact, lightweight design for convenient transportation.
Safety brake

Specification

Voltage 110V / 240V
Power consumption 1600 W
Idle engine speed: 1400 - 3400 min?¹
Saw blade diameter 260 mm
Cutting depth at 90°/90° 305 x 88 mm
Cutting depth at 45°/90° 215 x 88 mm
Special cutting depth 90°/90° 60 x 120 mm
Crown moulding diagonal cut 45°/90° 168 mm
Inclination angle 47/47 ° Mitre angle 50/60 °
Dimensions (W x D x H) 713 x 500 x 470 mm
Weight 23.1 kg Dust extraction connection dia. 27/36 mm
Special cut. depth 45°/90° (left) 40 x 120 mm
Special cutting depth 45°/90° (right) 20 x 120 mm
Cutting depth 50°/90° (left) 196 x 88 mm
Cutting depth 60°/90° (right) 152 x 88 mm
Cutting depth 45°/45° (left) 215 x 55 mm
Cutting depth 45°/45° (right) 215 x 35 mm
Crown moulding diagonal cut at 90°/90° 168 mm
Work height 900 mm Sawing: Total vibration average, Ah 2.5 m/s²
Sawing: Uncertainty (noise) K 3 dB
Sawing: A-weighted sound power level, LWA 101 dB(A)
Sawing: A-weighted sound pressure level, LpA 88 dB(A)
Sawing: Uncertainty (vibration) K 1.5 m/s²
