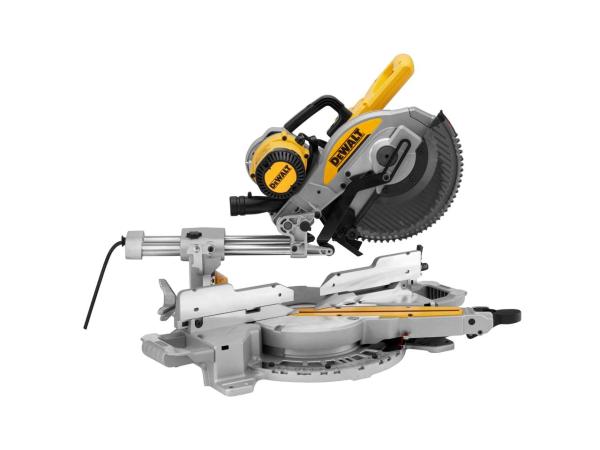

DeWALT DWS727 250mm Double Bevel Slide Mitre Saw with XPS

The DeWalt DWS727 250mm double bevel slide mitre saw is ideal for framing, kitchen fitting, window fitting, fitting architrave/skirting and much more. The built in XPS cross cut positioning system provides increase accuracy and visibility and unlike a laser system does not require any calibration. The compact, lightweight and targeted design delivers a saw focused on practical application which is easy to transport to and around d the jobsite. The integral and innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications. Supplied with 250mm blade.

Features

Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0 50 left and 0 60 right
Compact and lightweight design characteristics deliver a saw with application focused capacities which is easy to transport around the jobsite
The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications
The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles with integrated short stop for repetitive cuts
Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 305 mm wide
Quick release bevel setting provides accurate and simple setting of bevel angles up to 48 left and right
XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity
AIRLOCK compatible dust extraction improves cut line visibility and provides cleaner and safer jobsites
ToolConnect tag ready (tag not supplied)

Specification

No Load Speed: 4300 min/-1
Blade Diameter: 250mm
Blade Bore: 30mm
Bevel Capacity: 49/49°
Mitre Capacity [right/left]: 60/50°
Cutting Capacity at 90°/90° (WxH): 305x77mm
Cutting Capacity at 90°/45° (WxH): 305x50mm
Cutting Capacity at 45°/90°: (WxH): 210x77mm
Max. Cutting Capacity at 45°/45°: 210x50mm
Max. Depth of Cut: 150mm
Weight: 23Kg

Standard Equipment

1 x Mitre Saw
1 x 250mm Blade

Warranty

1 year warranty extended to 3 years with a MyDeWalt registration (within 4 weeks of purchase)
