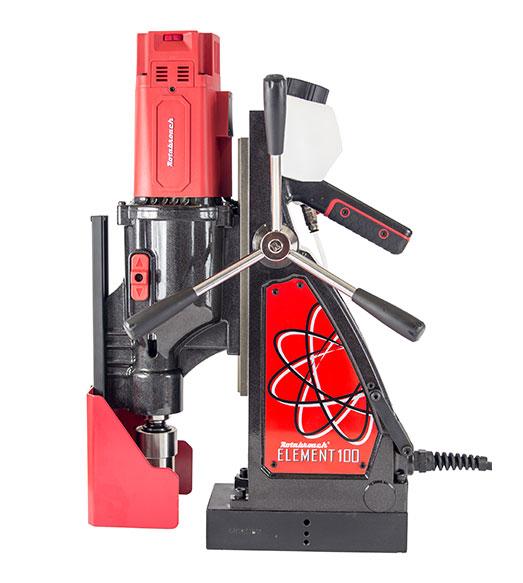

Rotabroach Element 100 Magnetic Drilling Machine

Rotabroach Element 100 Magnetic Drilling Machine

Voltage
Please select from the options above.
Quantity
-
+

Features


Rotabroach’s largest machine with large diameter drilling and cutting depths.
Suitable for drilling up to 100mm diameter by 100mm depth.
The ‘Element 100’ offers forward and reverse functionality for tapping.
The ‘Element 100’ can be supplied as a swivel base or a non-swivel base.
The Element range uses a unique dual motor protection system prolonging the machines life and preventing unwanted wear.


Specification


Motor Specification 2000W
No Load RPM Gear 1: 45-129 RPM Gear 2: 70-208 RPM Gear 3: 150-434 RPM Gear 4: 240-700 RPM
Max Hole Cutting Capacity 100mm x 100mm Deep – 31.75 with MT Drill
Overall Dimensions Height: 560mm / Width: 230mm with Capstan / Length: 460mm with Guard
Machine Weight 24.8kg
Magnetic Adhesion 20,000N
Magnet Size 228mm x 114mm
Safety Features Cutsmart™ Technology / Fixed Guard / Magnetic Detection


Warranty


12 Months
