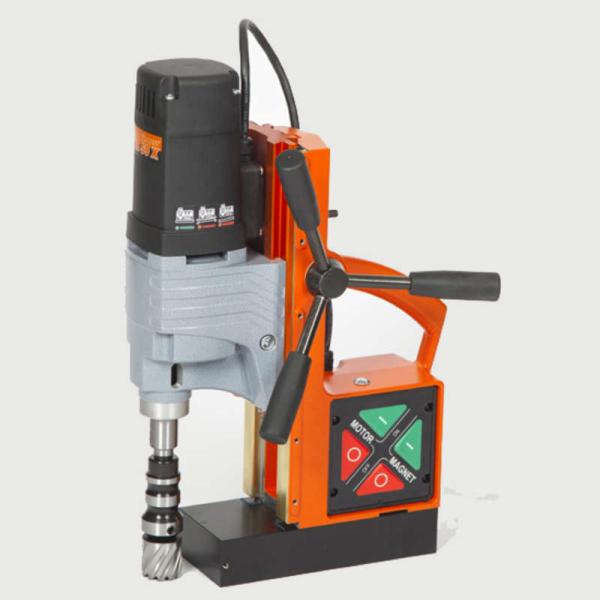

Alfra RB50X Magnetic Drilling Machine

Features

The magnetic core drilling machine can be fixed with a switchable electromagnet on ferromagnetic workpieces.The electromagnet and the motor can be switched on and off with the large buttons of the control panel.The LED above the front panel shows the operating status of the machine and the adhesive force of the magnet.A self-adjusting dovetail guide on which the motor is mounted can be adjusted in height with the star handle or belocked with a slide. On the back of the machine is the nameplate and an attachment for the enclosed Allen keys

Specification

Max Ø of cutter:Ø 12 - 50 mm
Max cutting Depth:50 mm
Twist Drill Ø max:Ø 1.0 - 16.0 mm with DIN 338Countersinking: Yes
Tapping: M20Arbor: MT2Stroke: 190mm
Motor adjustable in height: 100mm2 speed gear box rpm with load:1. gear 250 rpm2. gear 450 rpm
Input: 1.200WTool Force (10mm): 3.500NMagnet adhesion: 11.000NSize of magnet foot: 92x220mm
Weight: 15kg

Standard Equipment

Drilling Machine RB 50 X.Tool holder AMT-2 No internal cooling. Safety belt. Guard. Coolant unit .Transport Case . Operation manual .

Warranty

12 months
