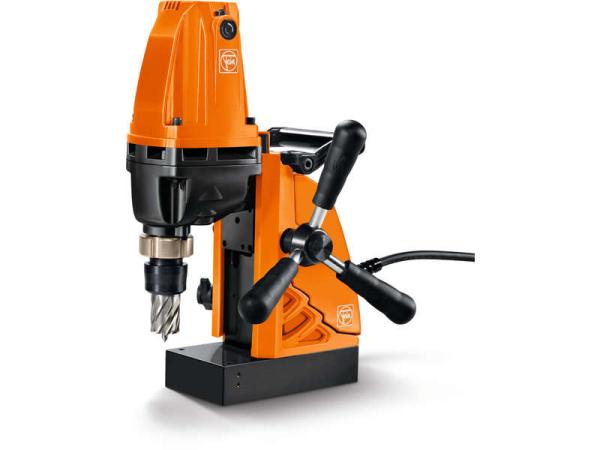

Fein KBB30 Metal Core Drilling Machine

Features

Extremely compact for drilling jobs on the construction site.
Extremely compact with perfect power-to-weight ratio for work at height and in tight spaces.
Feed handwheel can be moved from one side to the other for use in special work situations.
Concealed motor wiring prevents wires from snagging or getting caught on the workpiece.
Internal cooling. Easy guide adjustment.

Specification

Carbide core drill bit max. diameter 30 mm
HSS core drill max. Ø30 mm
Core drill, drilling depth max.50 mm
Input 750 W
Output 430 W
Speed, no load 740 rpm
Speed, full load 430 rpm
Core drill holder 3/4 in Weldon
Stroke 65 mm
Magnetic holding power 9 000 N
Magnetic foot dimensions 178 x 95 mm
Cable with plug 3,8 m
Weight according to EPTA 10,5 kg

Standard Equipment

1 case
1 coolant tank
1 lashing strap
1 swarf hook
 2 centering pins
1 socket head wrench 5 mm
1 contact guard

Warranty

click above logo to register your new FEIN product within 6 weeks after purchasefor the 3-year FEIN PLUS warranty.
