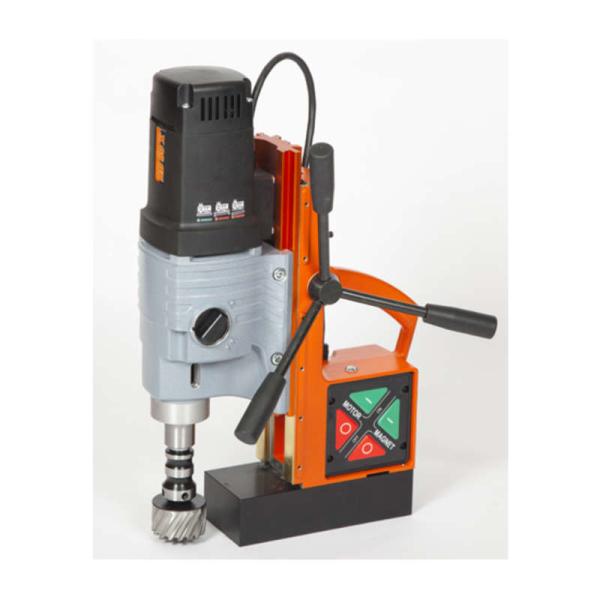

Alfra RB80X Magnetic Drilling Machine

Features

This device is destined to cut material with magnetisable surface with core cutters and twist drills in shelteredenvironment for commercial use in industry and craft. The device is suitable for drilling vertical, horizontal andoverhead

Specification

Max Ø of cutter:Ø 12 - 80 mm
Max cutting Depth:50 mm
Twist Drill Ø max:Ø 1.0 - 32.0 mm with DIN 338Countersinking: Yes
Tapping: M30Arbor: MT3Stroke: 190mm
Motor adjustable in height: 100mm2 speed gear box rpm with load:1. gear 110 rpm2. gear 175 rpm3. gear 245 rpm4. gear 385 rpm
Input: 1.800WTool Force (10mm): 4.000NMagnet adhesion: 13.000NSize of magnet foot: 92x220mm
Weight: 19.5kg

Standard Equipment

Drilling Machine RB 80 X.Tool holder AMT-3 No internal cooling. Safety belt .Guard .Transport Case . Operation manual .

Warranty

12 months
